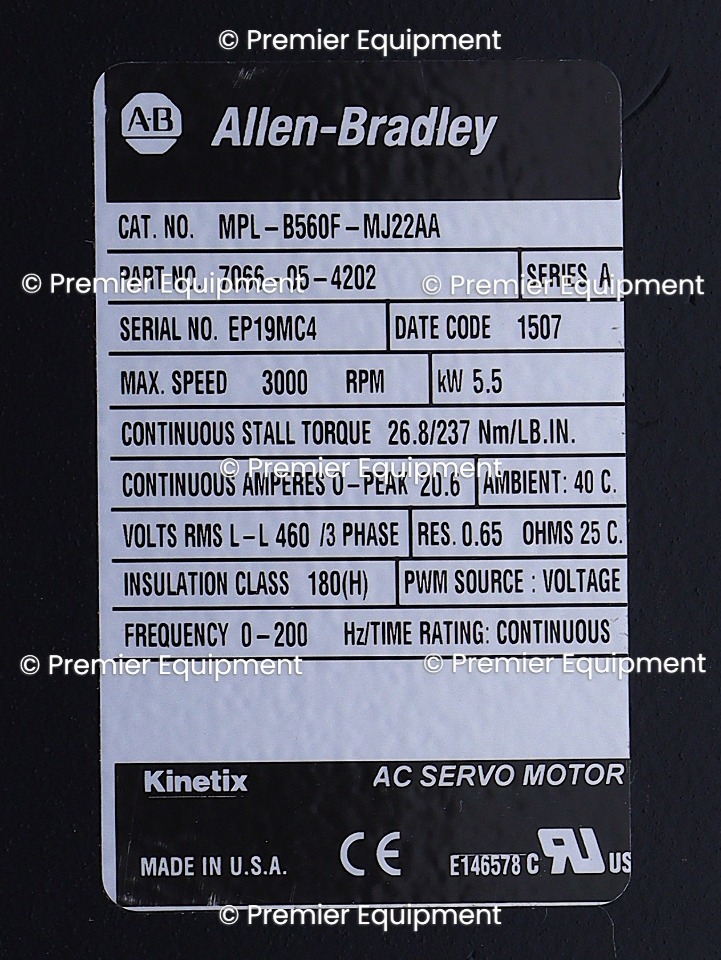

ALLEN BRADLEY MPL-B560F-MJ22AA SER A SERVO MOTOR 3000 RPM
MAX. SPEED
3000 RPM, kW 5.5
CONTINUOUS STALL TORQUE 26.8/237 Nm/LB.IN.
CONTINUOUS AMPERES O-PEAK 20.6
AMBIENT: 40 C.
VOLTS RMS L-L 460 /3 PHASE
RES. 0.65 OHMS 25 C.
INSULATION CLASS 180(H)
PWM SOURCE : VOLTAGE
FREQUENCY 0-200
Hz/TIME RATING: CONTINUOUS

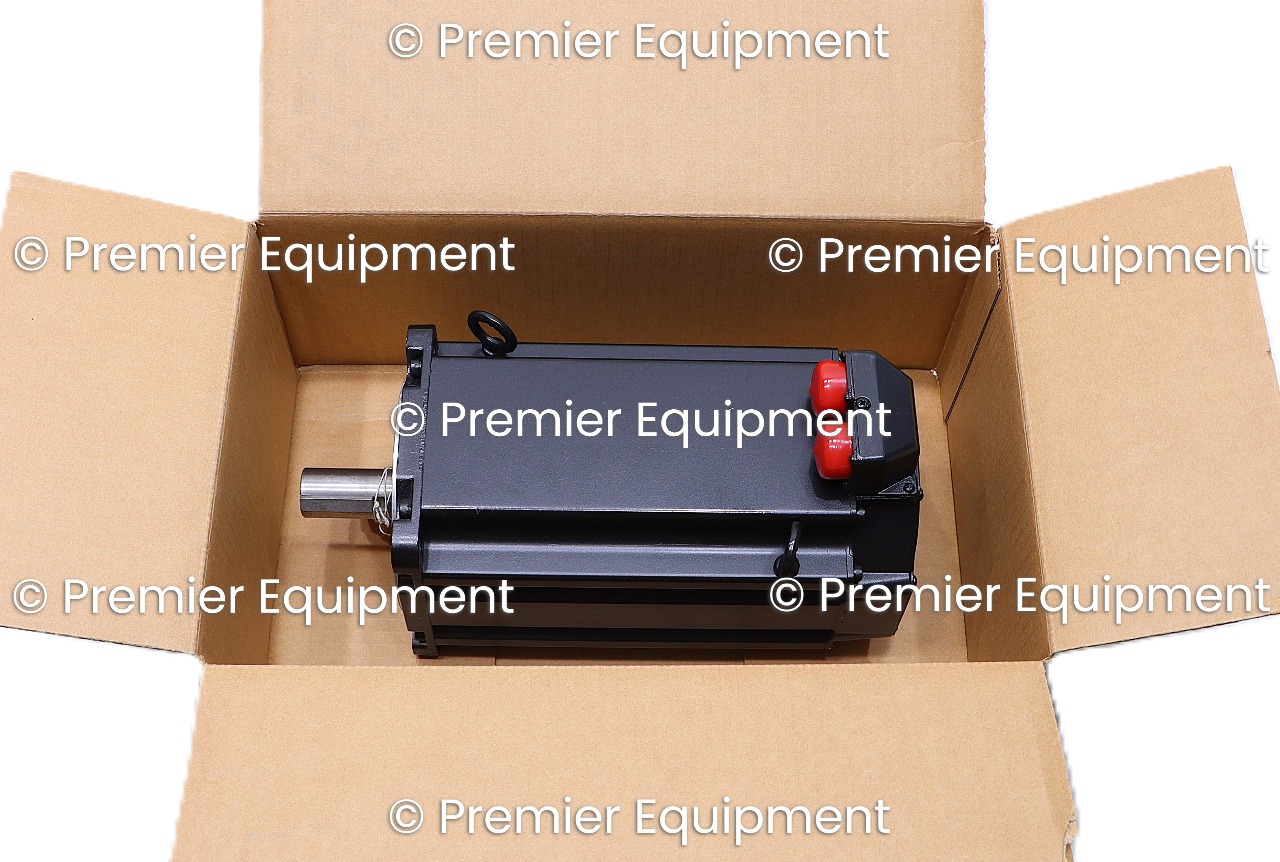

SURPLUS COMES IN NON-FACTORY BOX
