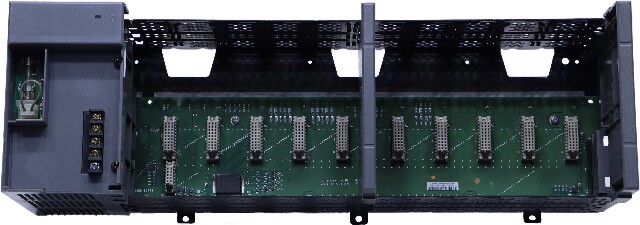

PLC RACK
SLC500
10 SLOT
FOR 1746 PLC MODULE
1747 PROCESSORS
PROGRAMMABLE LOGIC CONTROLLER CHASSIS I/O SUBSYSTEM
10 SLOT CHASSIS-MODULAR HARDWARE STYLE
17.1 X 39.7 X 14.5 CM
PANEL MOUNT

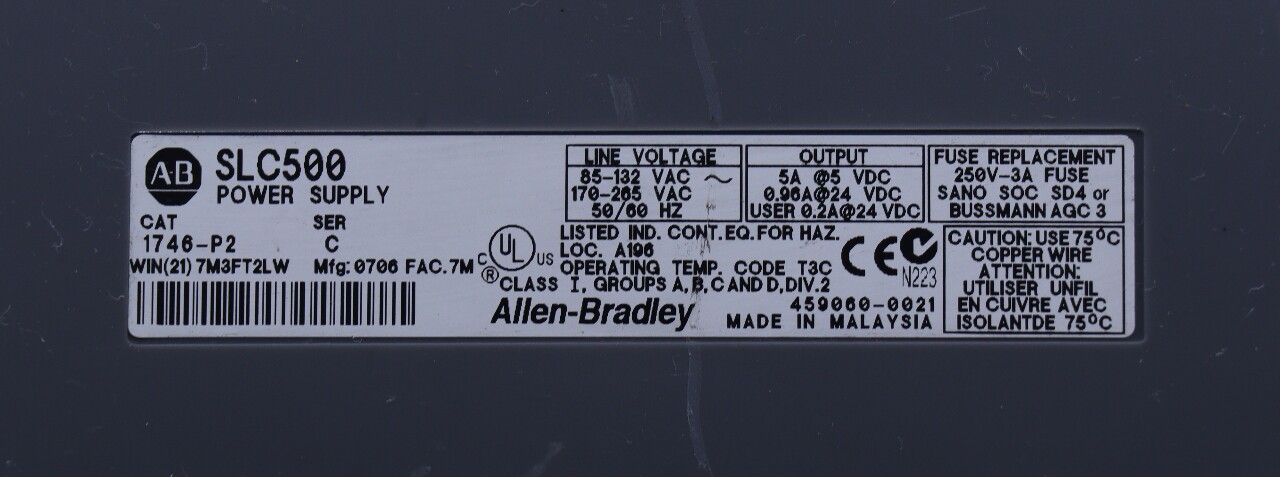

POWER SUPPLY
SLC RACK MOUNTING
85-132 / 170-265 VAC LINE VOLTAGE
47-63 HZ
180 VA TYPICAL LINE POWER REQUIREMENT
20 AMP MAX INRUSH CURRENT
5 AMP @ 5 VDC / 0.96 @ AT 24 VDC OUTPUT

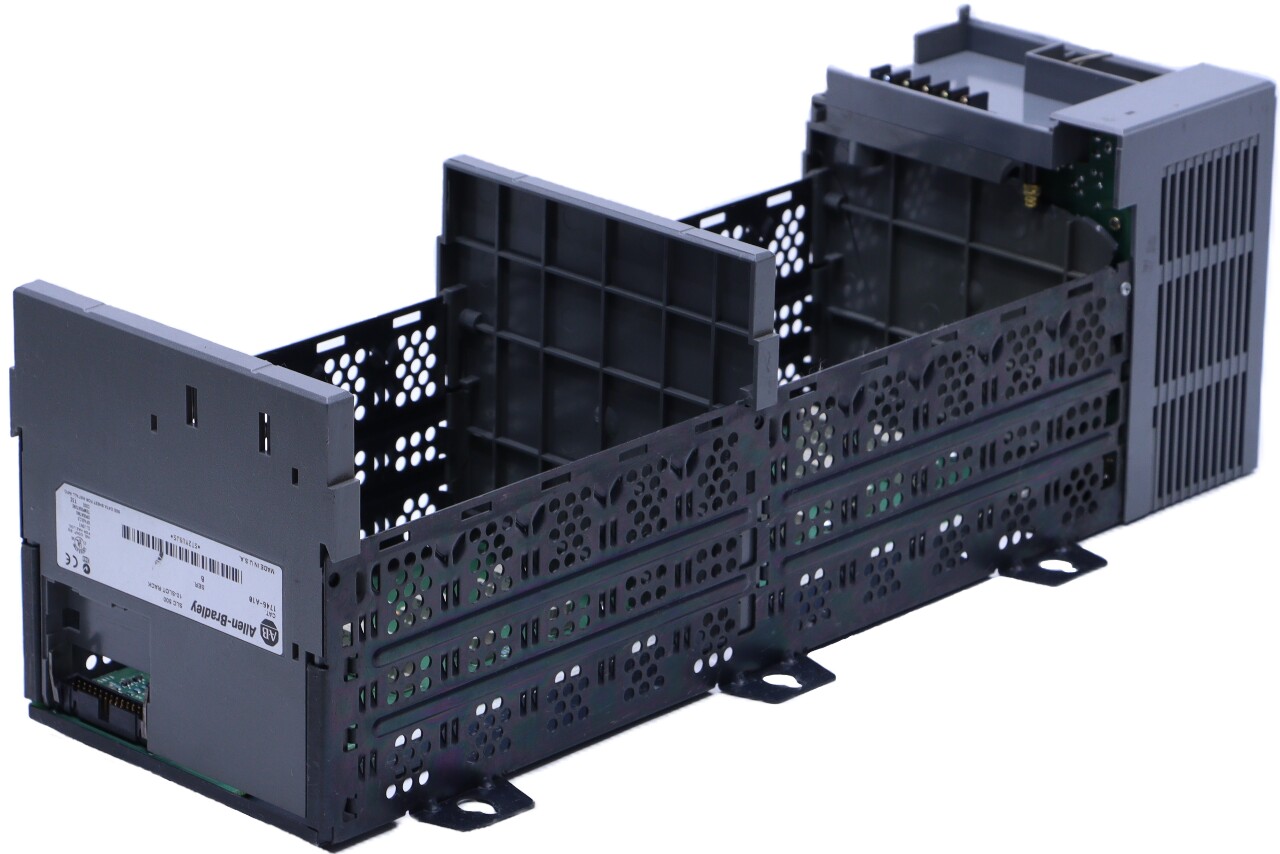

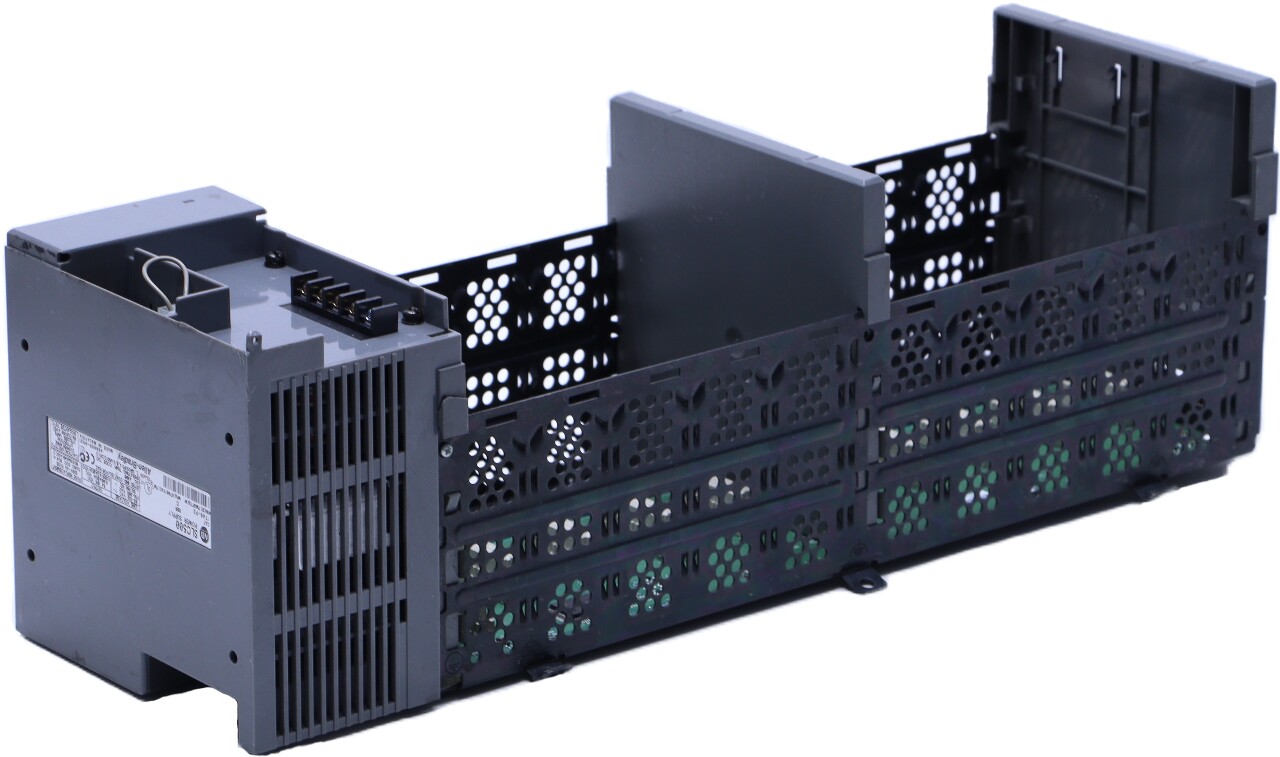

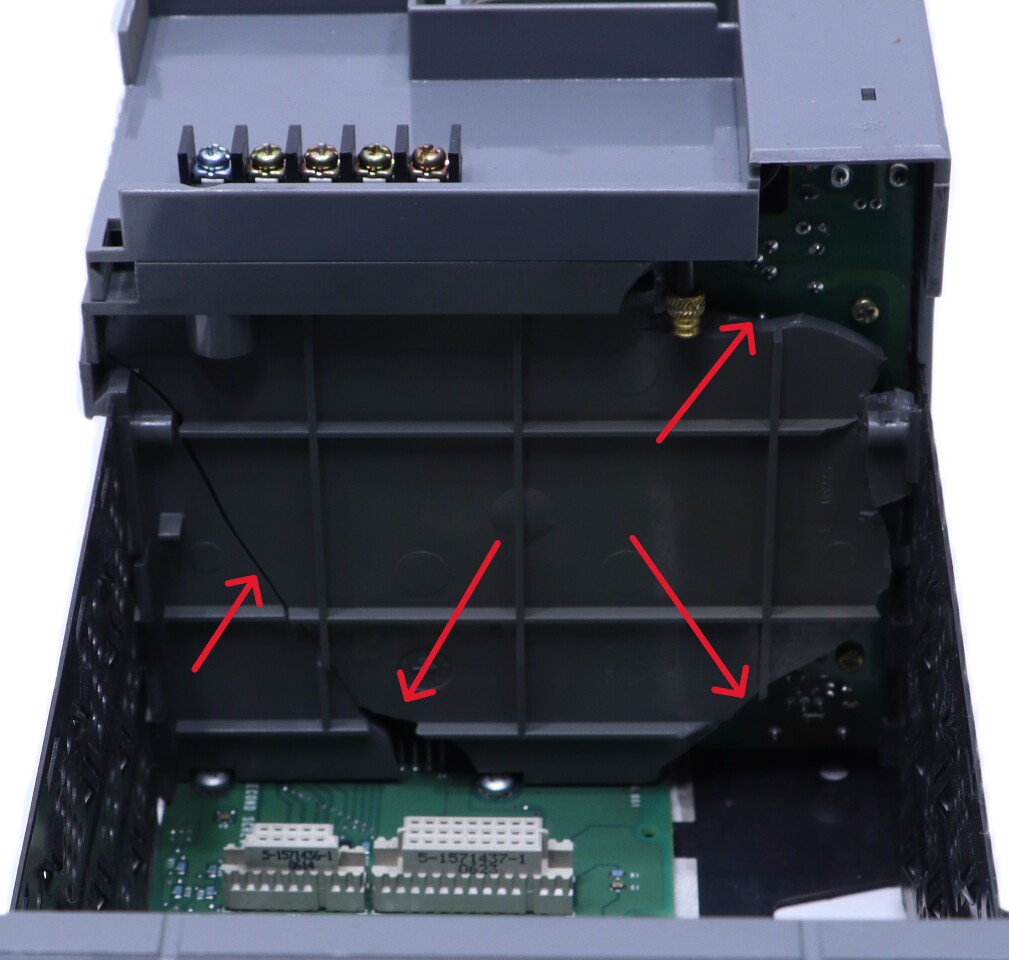

Cracks in plastic as shown in the pictures. Listed as is, for parts. No refunds or returns.
