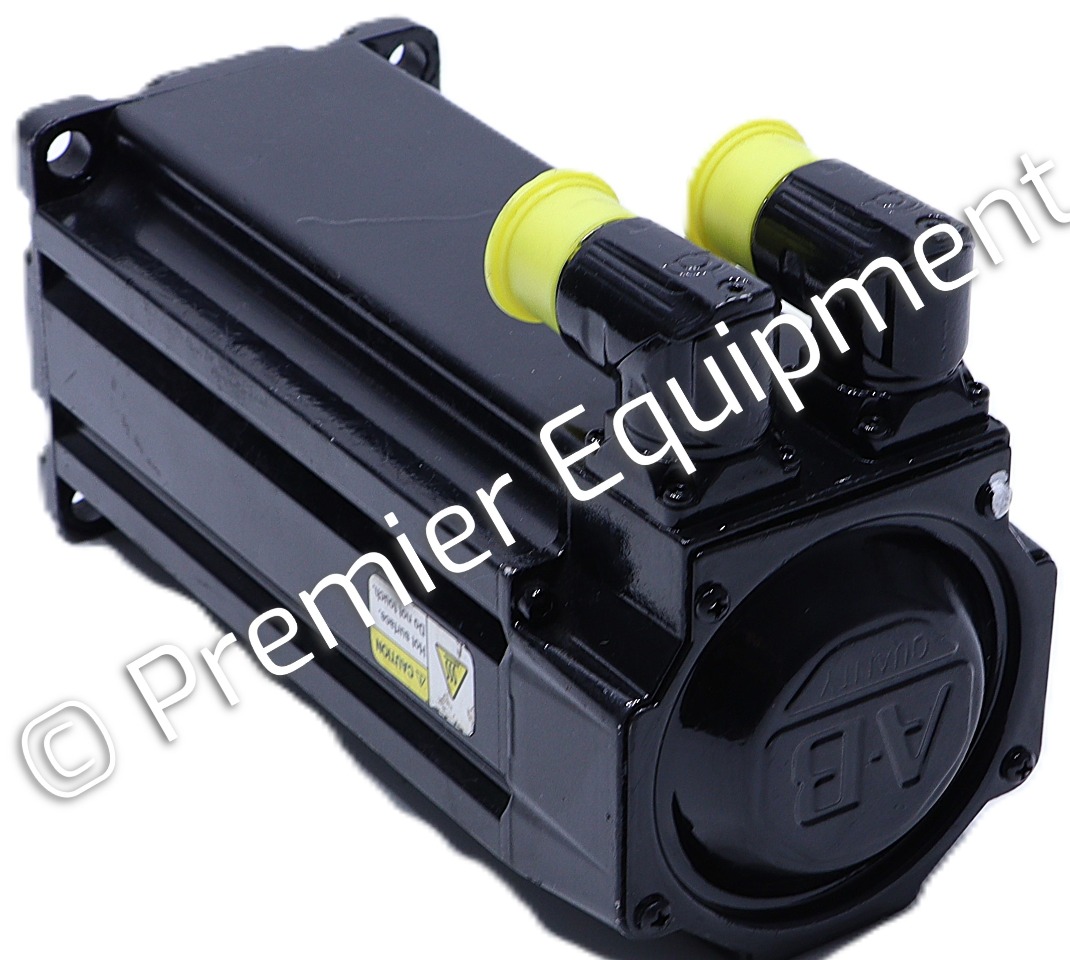

* SURPLUS ALLEN BRADLEY MPL-A430P-MK74AA KINETIX SERVO MOTOR 5000 RPM

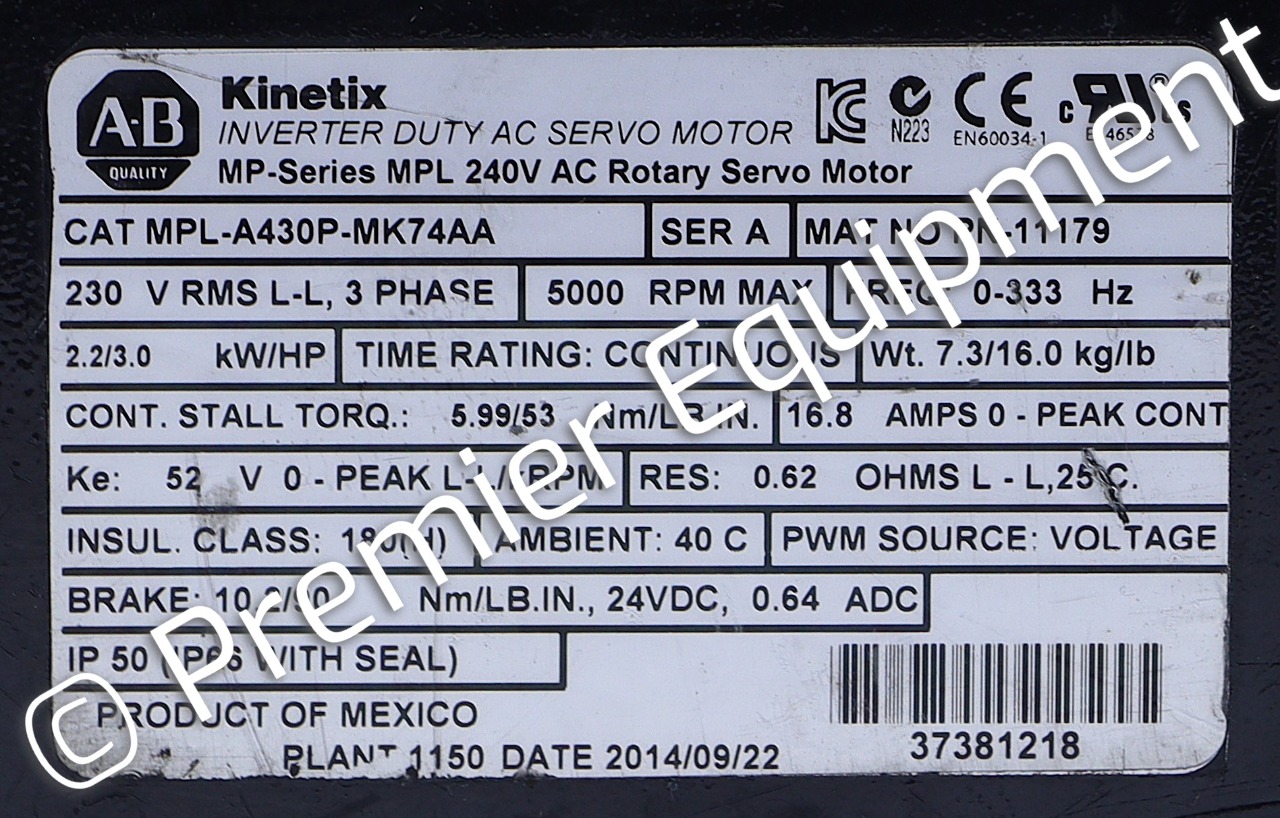

ALLEN BRADLEY MPL-A430P-MK74AA SER A KINETIX SERVO MOTOR 5000 RPM

230 V RMS L-L, 3 PHASE
5000 RPM MAX
MAT NO PN-11179
FREQ: 0-333 Hz
kW/HP
CONT. STALL TORQ .: 5.99/53 Nm/LB.IN.
16.8 AMPS 0 - PEAK CONT
RES: 0.62 OHMS L - L,25C.
AMBIENT: 40 C
Ke: 52 V 0 - PEAK L-L/kRPM
INSUL. CLASS: 180(H)
BRAKE: 10.2/90
PWM SOURCE: VOLTAGE
Nm/LB.IN., 24VDC, 0.64 ADC
2.2/3.0
TIME RATING: CONTINUOUS
Wt. 7.3/16.0 kg/lb

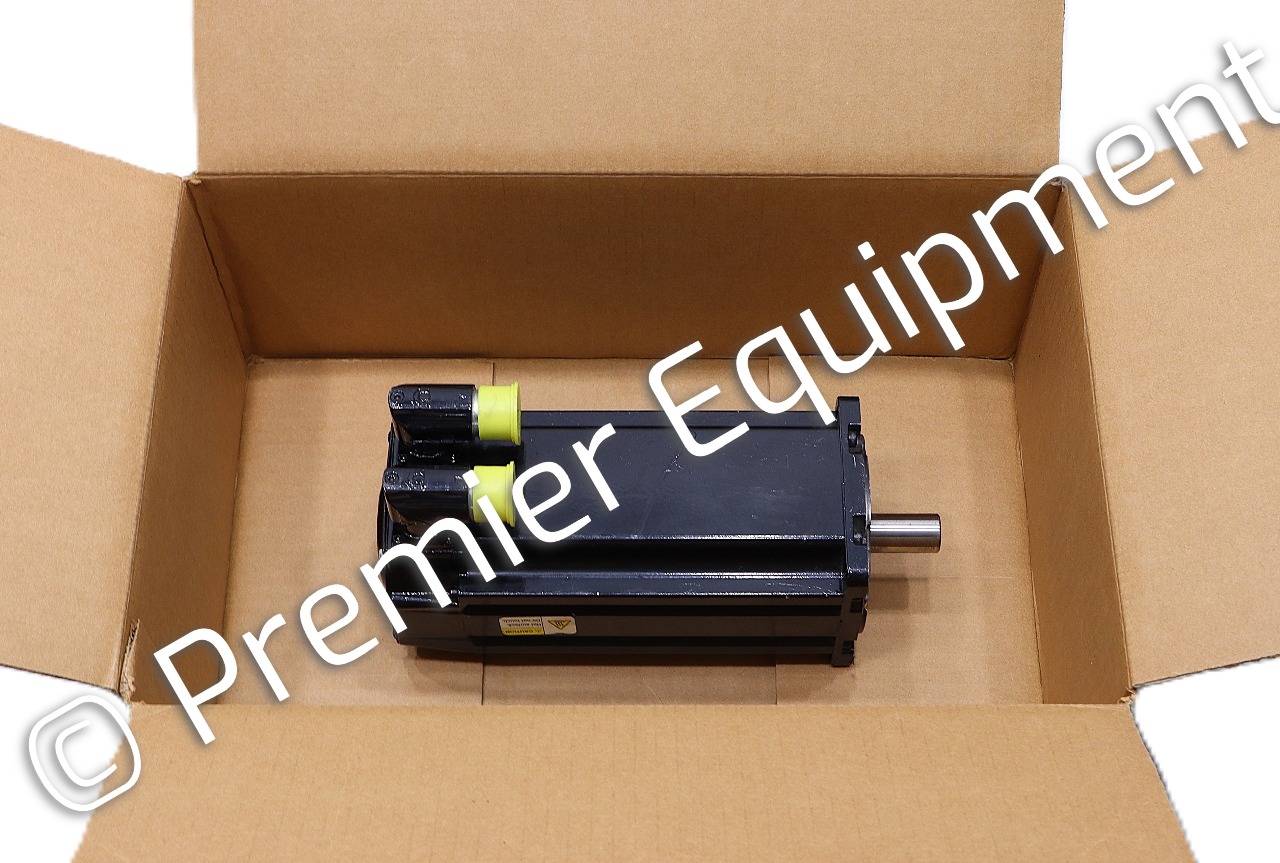

COMES IN NON-FACTORY BOX. SHELF LIFE, SOME SCUFF MARKS.
